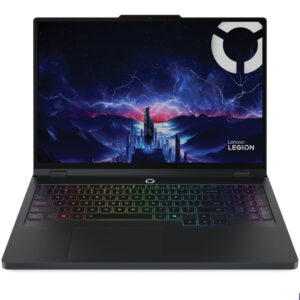

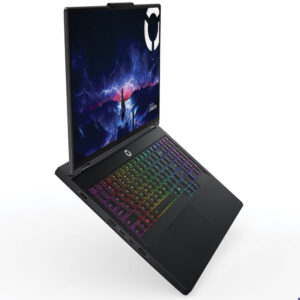

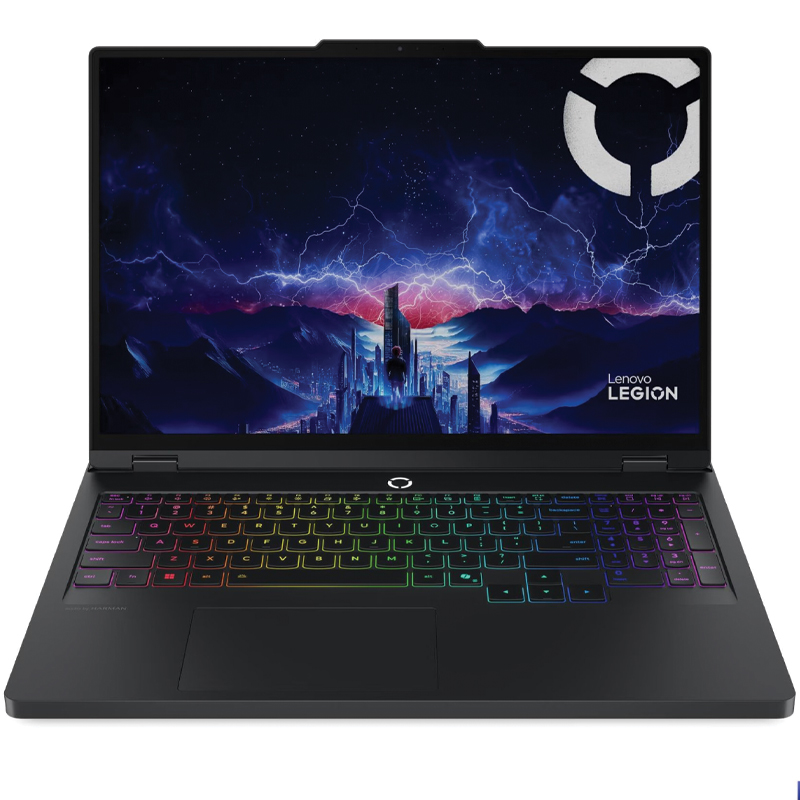

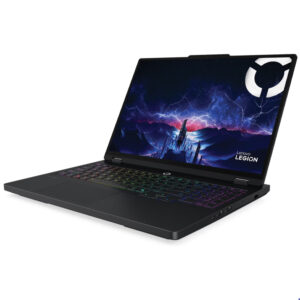

Lenovo Legion Pro 5 16IAX10H Gaming Laptop Intel Core Ultra 9 275HX | 32GB RAM | 1TB SSD | 16 Inch WQXGA OLED 165Hz | 83LU000RAX

Performance

• Processor: Intel Core Ultra 9 275HX, 24 cores (8P + 16E) / 24 threads, Max Turbo up to 5.4GHz, 36MB cache

• AI PC Category: AI-Powered Gaming PC

• NPU: Integrated Intel AI Boost, up to 13 TOPS

• Graphics: NVIDIA GeForce RTX 5070 Ti 12GB GDDR7, Boost Clock 2220MHz, TGP 140W, 992 AI TOPS

• Chipset: Intel HM870

• Memory: 2x 16GB SO-DIMM DDR5-5600, dual channel (max 32GB)

• Storage: 1TB SSD M.2 2280 PCIe 4.0×4 NVMe

• Storage Support: Up to 2x M.2 SSD (2242 up to 1TB, 2280 up to 1TB)

• Optical: None

• Card Reader: None

• Audio: Realtek ALC3306 HD Audio

• Speakers: Stereo 2W x2, HARMAN with Nahimic Audio

• Microphone: Dual array

• Camera: 5.0MP with E-shutter

• Battery: 80Wh

• Power Adapter: 300W Slim Tip (3-pin)

• Special Features: AI Chip LA3

Design

• Display: 16″ WQXGA OLED (2560×1600), 500nits typical / 1100nits peak, 100% DCI-P3, 165Hz, DisplayHDR True Black 1000, Dolby Vision, G-SYNC

• Touchscreen: None

• Screen-to-Body Ratio: 91.7%

• Color Calibration: Factory calibrated

• Keyboard: 24-Zone RGB Backlit, Arabic

• Touchpad: Buttonless Mylar multi-touch, 75 x 120 mm, Precision TouchPad support

• Dimensions: 364.38 x 268.06 x 21.69–25.95 mm

• Weight: 2.42 kg (5.34 lbs)

• Case Color: Eclipse Black

• Case Material: Aluminium (Top), PC-ABS (Bottom)

• Surface Treatment: Anodizing Sandblasting

Software

• Operating System: Windows 11 Home, Arabic / English

• Bundled Software: Office Trial + Lenovo AI Now

Connectivity

• WLAN + Bluetooth: Wi-Fi 6 (802.11ax 2×2) + BT5.2

• Ethernet: RJ-45, 100/1000M

• WWAN: Not supported

• Ports:
  • 2x USB-A (5Gbps, Gen 1)
  • 1x USB-A (10Gbps, Gen 2, Always On)
  • 1x USB-C (10Gbps, Gen 2, PD 65-100W + DP 2.1)
  • 1x USB-C (Thunderbolt 4 / USB4 40Gbps + DP 2.1)
  • 1x HDMI 2.1 (up to 8K/60Hz)
  • 1x Headphone/mic combo (3.5mm)
  • 1x Ethernet RJ-45
  • 1x Power connector

• Docking: Supports Thunderbolt / USB-C docking

Security & Privacy

• Security Chip: Firmware TPM 2.0 enabled

• Fingerprint Reader: None

• Other: E-shutter
